The Science Behind Ultrasonic Cool Mist: How High-Frequency Vibrations Create Mist
The Science Behind Ultrasonic Cool Mist: How High-Frequency Vibrations Create Water Mist
A visible cloud of mist coming from a humidifier may look simple, but the technology behind it involves electrical energy, piezoelectric materials, mechanical vibration and fluid behaviour.
Unlike traditional steam humidifiers, ultrasonic humidifiers do not need to boil water to produce visible mist. Instead, they use a small component called a piezoelectric transducer that vibrates at ultrasonic frequencies. These rapid vibrations transfer energy into the water and help create extremely small droplets that can disperse into the surrounding air.
This technology turns a basic process of adding moisture to indoor air into an interesting example of how modern electronics and physics can work together.
What Does Ultrasonic Technology Mean?
The word ultrasonic refers to sound or mechanical vibrations at frequencies above the normal range of human hearing.
Human hearing generally extends to approximately 20,000 hertz. Ultrasound refers to frequencies above this range. Although we cannot normally hear these vibrations, they can still transfer mechanical energy and interact with materials.
Ultrasonic technology is used in many areas of engineering and science, including medical imaging, industrial cleaning, sensors, material processing and humidification.
In an ultrasonic humidifier, the same basic principle of high-frequency vibration is applied to water. Instead of using heat as the primary mechanism, the appliance uses mechanical vibration to disturb the water and produce fine droplets.
The Piezoelectric Effect
The key component behind ultrasonic mist generation is the piezoelectric transducer.
Piezoelectric materials have a useful property: they can deform slightly when an electrical voltage is applied to them. The reverse effect can also occur, where mechanical stress produces an electrical response.
An ultrasonic humidifier uses this property in a controlled way.
An electronic circuit sends an alternating electrical signal to the piezoelectric element. As the electrical signal changes, the material expands and contracts extremely rapidly. This creates mechanical vibration.
The vibration is then transferred to the water positioned above or around the transducer.
In simplified form, the energy pathway looks like this:
Electrical energy → Piezoelectric deformation → Mechanical vibration → Water disturbance → Fine droplets
The important point is that electricity is not directly turning the water into mist. The electrical system first creates mechanical vibration, and that vibration interacts with the water.
How Does Water Become Mist?
When the ultrasonic transducer vibrates, it creates rapid oscillations in the water near its surface.
At sufficiently high frequencies and under the appropriate operating conditions, these oscillations can disturb the water surface and generate very small droplets.
These droplets can then become suspended in the surrounding air and form the visible cloud we recognise as mist.
The process can therefore be simplified into four stages:
1. Electrical energy enters the transducer.
2. The piezoelectric material converts that energy into mechanical vibration.
3. The vibration transfers energy into the water.
4. Fine water droplets are generated and dispersed into the air.
The visible mist is therefore the final result of several invisible processes happening inside the appliance.
Why Is the Mist Called Cool Mist?
The term cool mist describes the way the mist is generated and released without using boiling water as the primary mechanism.
A steam humidifier uses thermal energy to heat water and generate water vapour. The water must undergo a significant temperature increase before steam is produced.
An ultrasonic humidifier works differently. Its transducer transfers mechanical energy into the water through high-frequency vibration.
Because the system does not rely on boiling water to produce the visible mist, the resulting mist is generally cool rather than hot.
This difference is fundamental to the technology:
Steam humidification → Thermal energy
Ultrasonic humidification → Mechanical vibration
Is the Visible Mist Actually Water Vapour?
This is one of the most interesting details about ultrasonic humidification.
The visible cloud produced by an ultrasonic humidifier is primarily made up of very small liquid water droplets, rather than water vapour alone.
Water vapour is a gas and is normally invisible. If you can clearly see a white or translucent mist coming from an ultrasonic humidifier, light is being scattered by the tiny droplets suspended in the air.
This is similar to how fog becomes visible outdoors. The individual water droplets are small, but collectively they can scatter enough light for the cloud to become visible.
Once the droplets enter the surrounding environment, their behaviour depends on conditions such as temperature, relative humidity, airflow and droplet size.
From Droplets to Humidity
The ultimate purpose of an ultrasonic humidifier is not simply to create visible mist. Its purpose is to add moisture to the surrounding air.
Once water droplets enter the room, they interact with the surrounding atmosphere. Depending on environmental conditions, some of the liquid water can transition into water vapour.
Over time, this can change the amount of moisture present in the air.
This is why the visible mist should not be confused with the final humidity level of the room. A strong visible mist close to the appliance does not automatically mean that humidity is evenly distributed throughout the entire space.
Understanding Relative Humidity
To understand what a humidifier is actually changing, it helps to understand relative humidity.
Relative humidity describes the amount of water vapour currently present in the air compared with the maximum amount of water vapour the air can hold at the same temperature.
Temperature matters because warmer air can contain more water vapour before reaching saturation.
This means that the same amount of moisture can produce different relative humidity readings at different temperatures.
Humidification is therefore not simply about producing mist. It is about changing the moisture balance of an indoor environment.
What Determines How Much Mist Is Produced?
Several factors influence the amount of mist an ultrasonic system can generate.
Vibration Frequency
The transducer operates at a high frequency selected by the appliance's electronic system. The frequency influences how the transducer interacts with the water.
Vibration Amplitude
Frequency describes how rapidly the vibration occurs, while amplitude describes the magnitude of the vibration. Together, these characteristics influence how much mechanical energy is transferred into the water.
Transducer Design
The physical construction and operating characteristics of the transducer determine how effectively electrical energy can be converted into mechanical vibration and coupled into the water.
Water Level
The amount of water surrounding the transducer can influence the operating conditions of the system. Ultrasonic humidifiers are therefore designed with specific water-level requirements for proper operation.
Water Properties
The physical and chemical properties of the water can also influence how an ultrasonic system behaves. Dissolved minerals, for example, remain in the water when water droplets are dispersed into the air rather than being removed through boiling.
This is one reason water quality and regular appliance maintenance are important considerations when using ultrasonic humidification technology.
Air Movement
Once droplets are generated, airflow influences how they move away from the humidifier and into the surrounding room.
A system that generates mist but has limited air movement may produce a visible concentration of droplets near the outlet rather than distributing moisture evenly throughout a larger space.
Why Airflow Matters to Mist Distribution
Generating droplets is only the first part of the process.
Those droplets need to move through the surrounding environment.
Air movement inside a room can be created by natural convection, ventilation systems, ceiling fans, tower fans or the humidifier's own internal airflow.
These air currents influence how quickly moisture moves away from the humidifier.
Room size and layout also matter. Walls, furniture and other objects can alter airflow pathways and create areas where air moves more slowly.
This means that the location of a humidifier can influence how moisture is distributed throughout the room.
Why Ultrasonic Mist Looks Different From Steam
Steam and ultrasonic mist may both appear as a cloud coming from a humidifier, but they are produced through very different physical processes.
Steam is produced when water receives enough thermal energy to change into a gas. The resulting water vapour itself is invisible, although it may later condense into visible droplets when it encounters cooler air.
Ultrasonic humidifiers, on the other hand, can directly generate very small liquid droplets through mechanical vibration.
That difference explains why ultrasonic mist can appear visibly dense even though the appliance is not boiling the water.
Ultrasonic vs Steam Humidification
Both technologies add moisture to indoor air, but they use different mechanisms.
Ultrasonic humidification uses high-frequency mechanical vibration to generate fine droplets.
Steam humidification uses thermal energy to heat water and produce vapour.
The difference can be summarised as:
Ultrasonic: electrical energy → mechanical vibration → droplets
Steam: electrical energy → heat → water vapour
The underlying energy-transfer mechanism is what distinguishes the two technologies.
Ultrasonic vs Evaporative Humidification
There is another common humidification approach: evaporative humidification.
Evaporative systems generally use a wet surface or wick through which air is passed. Water naturally evaporates from the wet surface into the moving air.
Ultrasonic systems are different because they mechanically generate fine droplets instead of relying primarily on natural evaporation from a wet surface.
This gives us three different approaches:
Ultrasonic: Mechanical vibration creates droplets.
Steam: Heat converts water into vapour.
Evaporative: Air passes over water and supports natural evaporation.
Each method uses a different physical mechanism to move water into the indoor environment.
What Happens to the Water After It Enters the Air?
Once fine droplets leave the humidifier, they do not simply remain suspended indefinitely.
Their behaviour depends on the surrounding air.
If the air is relatively dry, water can continue transitioning from liquid droplets toward water vapour. If the surrounding air is already highly humid, evaporation can occur more slowly.
Temperature also influences evaporation. Warmer conditions generally provide greater capacity for water vapour than cooler conditions.
Air movement can further change the rate at which moisture is transported away from the droplets.
This creates a dynamic relationship between the humidifier, the water droplets and the surrounding indoor environment.
Why Water Quality Matters in Ultrasonic Systems
Ultrasonic humidifiers create airborne droplets directly from the water contained inside the appliance.
This makes the composition of that water relevant to what can potentially become airborne with the droplets.
Tap water can contain dissolved minerals. When water containing dissolved minerals is dispersed as fine droplets, the water itself can eventually evaporate while some of the non-volatile material remains behind.
This is different from steam-generation systems, where boiling and condensation can behave differently with respect to dissolved substances.
For this reason, manufacturers may specify particular water-quality requirements or maintenance practices for ultrasonic humidifiers. Following the instructions supplied with the individual appliance is important.
Why Regular Cleaning Is Part of the Technology
Any appliance that stores water needs to be maintained properly.
Water can provide an environment where deposits accumulate over time. Mineral deposits can build up on surfaces and components, while stagnant water can create an unsuitable environment for continued operation.
Cleaning the reservoir and other accessible components according to the manufacturer's instructions helps maintain the appliance and its water pathway.
This is not separate from the technology. Water management and maintenance are integral parts of operating a humidification system.
The Role of Sensors and Electronic Controls
Modern ultrasonic humidifiers can combine the basic transducer system with electronic controls and sensors.
Depending on the design, controls can regulate mist output, operating time, fan speed or other functions.
Some systems can also monitor environmental conditions and adjust their operation according to the selected settings.
This illustrates how a modern humidifier is more than a vibrating component. It is an integrated system combining electronics, sensing, water management and airflow.

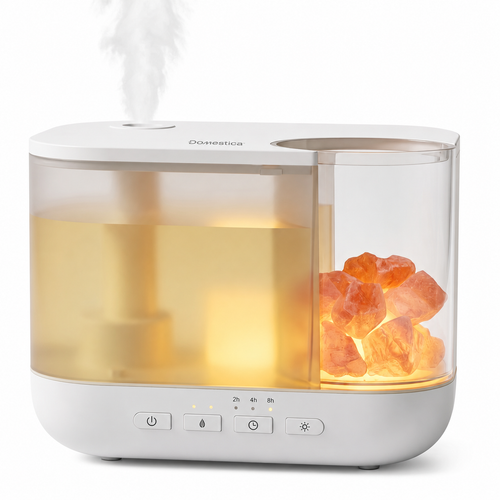

Domestica Shizen Soft Diffusion Ultrasonic Humidifier
The Domestica Shizen Soft Diffusion Ultrasonic Humidifier is an example of a home appliance built around ultrasonic mist-generation technology.
Its relevance to this technology comes from the same principle discussed throughout this article: an electronic system drives a piezoelectric transducer, creating high-frequency mechanical vibrations that interact with water and generate fine droplets.
The visible mist coming from the appliance is therefore only the final stage of a process that begins with electrical energy and continues through vibration, water movement and air dispersion.
Looking at the Shizen through the lens of the underlying technology also shows why an ultrasonic humidifier is more than a simple water container with an outlet. The electronic controls, transducer, water reservoir and mist-distribution system all work together to create the final output.
The product can be explored here: Domestica Shizen Soft Diffusion Ultrasonic Humidifier.
Why Ultrasonic Technology Is Interesting
The most interesting aspect of ultrasonic humidification is the energy conversion taking place inside a relatively small appliance.
Electrical energy enters an electronic circuit. The circuit drives a piezoelectric material. The material converts the electrical signal into mechanical vibration. That vibration transfers energy into water, producing fine droplets.
The entire sequence happens rapidly and continuously while the appliance is operating.
It is an example of how modern consumer technology can apply principles from physics and materials science to an everyday task.
Where Ultrasonic Humidifiers Fit Into Modern Home Technology
Modern ultrasonic humidifiers combine several technologies within a compact system.
These can include:
Piezoelectric materials for converting electrical signals into mechanical vibration.
Electronic control circuits for regulating the transducer and appliance functions.
Water management systems for storing and delivering water to the mist-generation area.
Airflow systems for helping move the generated droplets into the surrounding environment.
Control interfaces that allow the user to select operating modes, output levels or timers depending on the appliance.
Domestica's ultrasonic humidifier range uses this general ultrasonic principle to generate cool mist and add moisture to indoor air.
The Complete Energy Chain
The technology can be understood as a chain of transformations:
Electrical energy → Electronic signal → Piezoelectric vibration → Water surface movement → Fine droplets → Airborne mist → Moisture distribution
Each stage has a different role.
The electronic system controls the energy. The piezoelectric component creates the vibration. The water responds to that vibration. The resulting droplets interact with the surrounding air.
What we see as a simple mist is therefore the final visible stage of a much more complex physical process.
The Bigger Picture
Ultrasonic cool mist technology is a useful example of how engineering can manipulate matter without relying on conventional heating.
A small piezoelectric component can vibrate at frequencies far beyond human hearing and transfer mechanical energy into water. Under controlled conditions, that energy can produce extremely fine droplets that become visible as a mist.
The technology brings together concepts from electrical engineering, materials science, acoustics, fluid dynamics and thermodynamics.
Understanding those connections changes how we look at an everyday humidifier. The mist is not simply water being “sprayed” into the room. It is the visible result of controlled energy conversion and interaction between vibration, water and air.
Takeaway
An ultrasonic humidifier creates cool mist without relying on boiling water. Its core component, the piezoelectric transducer, converts an electrical signal into high-frequency mechanical vibration. That vibration interacts with water and produces extremely small droplets that can disperse into the surrounding air.
The technology involves much more than the visible mist. Vibration frequency, transducer design, water conditions, airflow, temperature and room humidity all influence what happens after the appliance is switched on.
Understanding these principles shows why ultrasonic humidification is fundamentally different from steam and evaporative technologies, while also demonstrating how sophisticated physical processes can be built into everyday home appliances.
